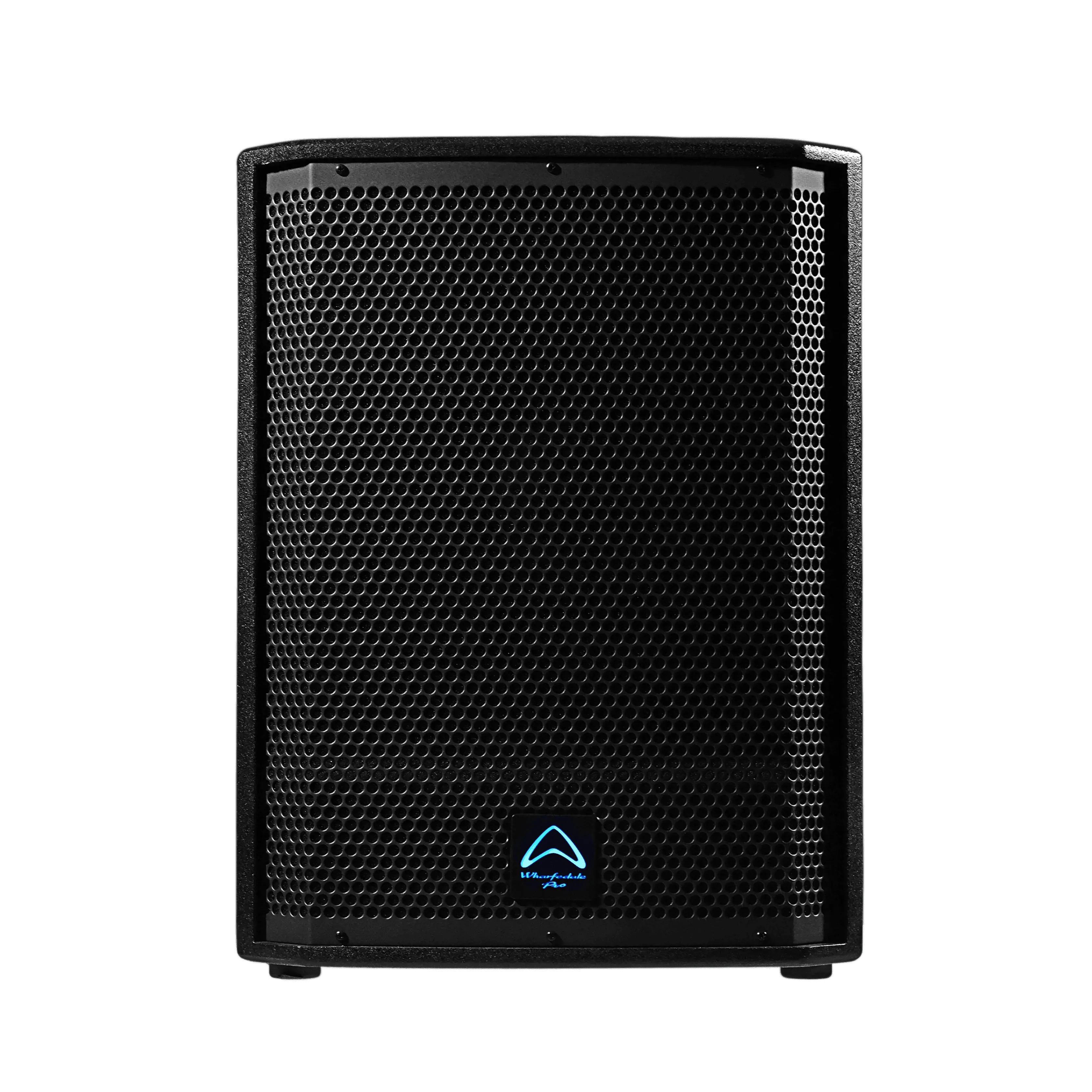

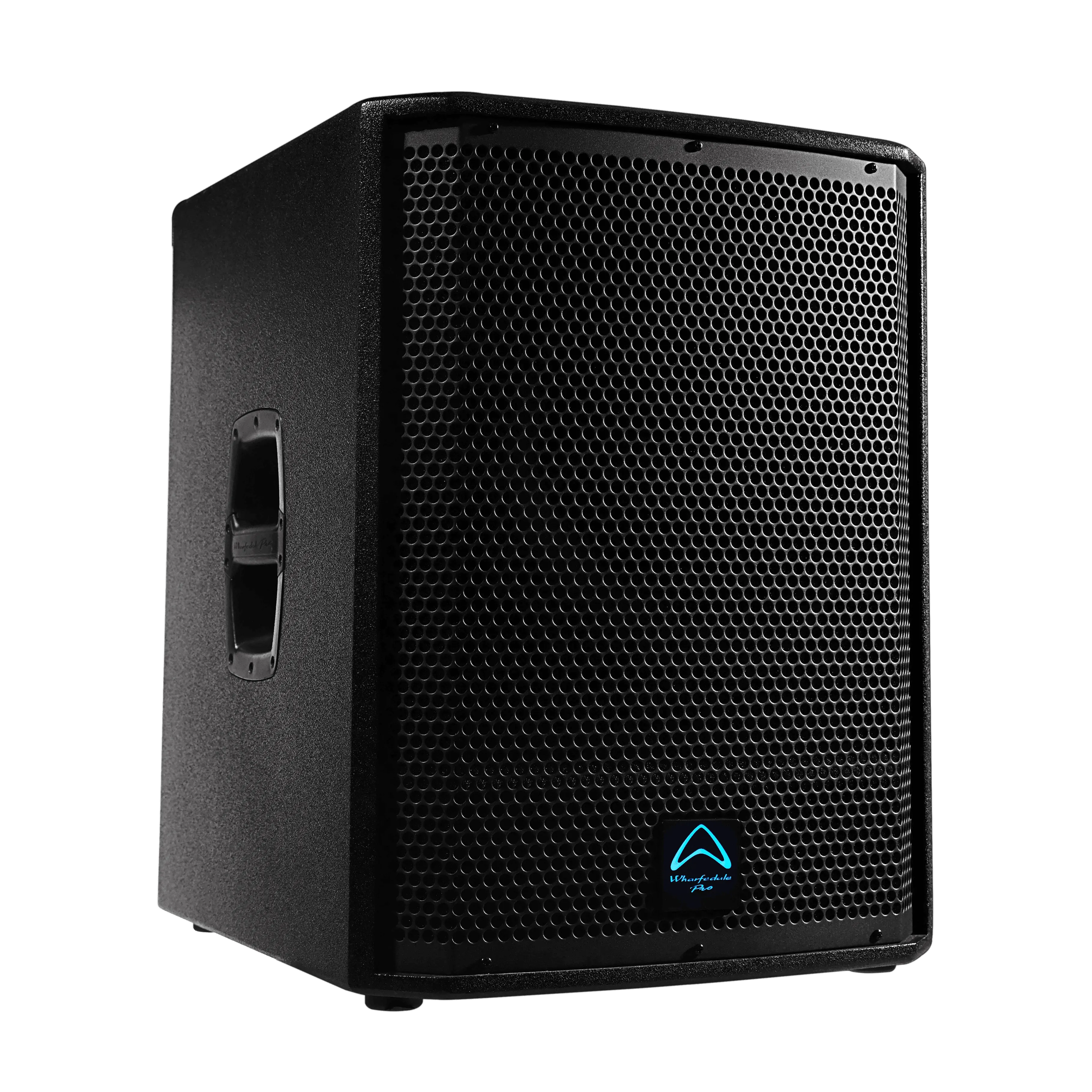

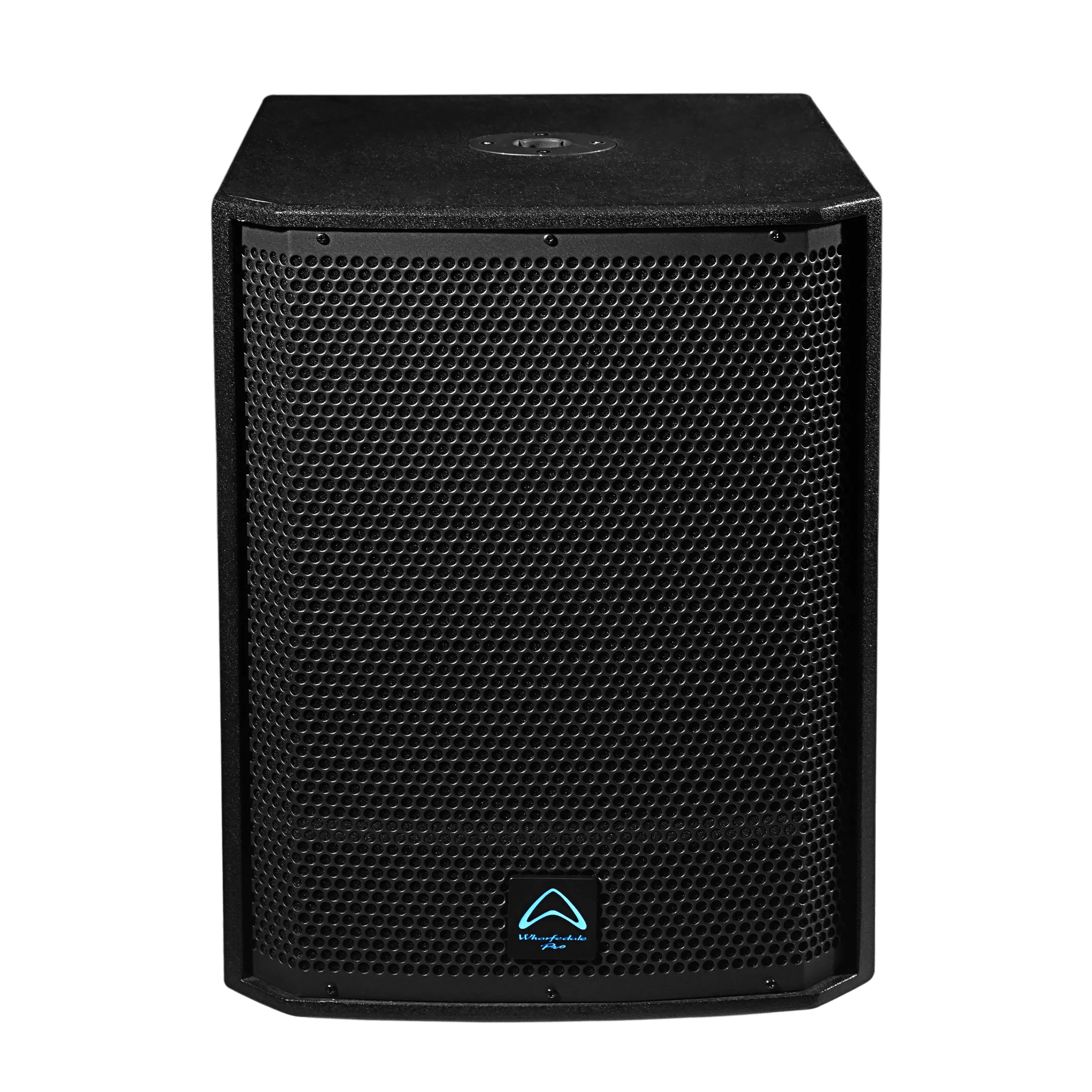

Are you looking for the ultimate bass experience? Look no further than the Wharfedale T-Sub AX15B Subwoofer! With 700 W Continuous and 1400 W Peak power, this 15” active subwoofer is sure to give you the best in low-end pressure. The plywood constructed cabinet is rock solid and is protected in durable Rhino Rock paint and features a new illuminated WP logo badge. Plus, the T-Sub-AX15B has 75% more power than the current Titan Sub-A15 MKII. Perfect for pairing with any Wharfedale Pro plastic active loudspeakers, the T-Sub-AX15B is sure to blow your socks off!
KEY FEATURES
- 700 Watts Continuous
- 1400 Watts Peak
- 129 dB Max SPL @ 1 meter
- Birch plywood construction
- Illuminated LED front logo badge
- Convection cooled Class D amplifier
- Adjustable low pass filter
- 3.0″ voice coil
- Quad layer driver design
- 35 mm pole socket & durable handles
SPECIFICATIONS
| System Type | Active 15″ Subwoofer |
| Frequency Response ( /-3 dB) | 45 Hz-200 Hz |
| Sensitivity @ 1W / 1 m | 97 dB |
| Maximum SPL (peak @ 1 m) | 129 dB |
| Low Frequency Transducer | |
| Size (mm / inches) | 404 mm / 15” |
| Coil Size (mm / inches) | Quad layer 3.0″ |
| Impedance | 4Ω |
| Amplifier | |
| Low-Frequency Power Amplifier (Class D) | 700 w Continuous / 1400 w Peak |
| Crossover Frequency | LPF 80-200 Hz (adjustable) |
| Controls | |
| Amplifier Protection | Yes |
| Power On Protection | Power switch on / off mute |
| Thermal Protection | Amplifier shutdown, auto reset |
| Driver Protection | Yes |
| DC Protection | Yes |
| Short Protection | Yes |
| Limiter Indicator | Red LED |
| Input type | Balanced |
| Input Connector | Female XLR |
| Input Impedance | 47 KΩ Balanced |
| Maximum Input Level | 5V |
| Input Sensitivity | -10 dB |
| Line Output Connector | Male XLR |
| Phase Switch Selection | 0° / 180° |
| AC Power details | |
| Power Supply | SMPS |
| AC Power Options | 100V-120V and 200V-240V |
| Power Indicator | Green(back) / Blue logo(front) |
| Enclosure | |
| Enclosure Material | 15 mm Plywood |
| Colour | Black |
| Grille | 1.5 mm steel |
| Pole Mount (Top) | 35 mm |
| Dimensions / Weight | |
| Height | 591 mm / 23.27″ |
| Width | 454 mm / 17.9″ |
| Depth | 523.9 mm / 20.63″ |
| Weight (kg / lbs) | 29.5 kg / 64.9lbs |
HOW IT WORKS:
The T-Sub-AX15B is an active subwoofer that requires connection to a power source in order to run. It has a 15” custom quad-layer Wharfedale Pro LF driver that delivers huge output power to produce extreme subs and low end pressure. The cabinet is constructed from plywood and is protected with a durable Rhino Rock paint. It also features a new illuminated WP logo badge.PRODUCT FAQ:
Q: How powerful is the T-Sub-AX15B?A: The T-Sub-AX15B has 700 W Continuous and 1400 W Peak power.
Q: What type of driver does the T-Sub-AX15B have?
A: The T-Sub-AX15B has a 15” custom quad-layer Wharfedale Pro LF driver.
Q: Is the cabinet protected?
A: Yes, the cabinet is constructed from plywood and is protected with a durable Rhino Rock paint.
