Features-
- 12″ Active sub
- Quad layer driver
- 2.0″ voice coil
- 500 W Continuous
- 1000 W Peak
Description-

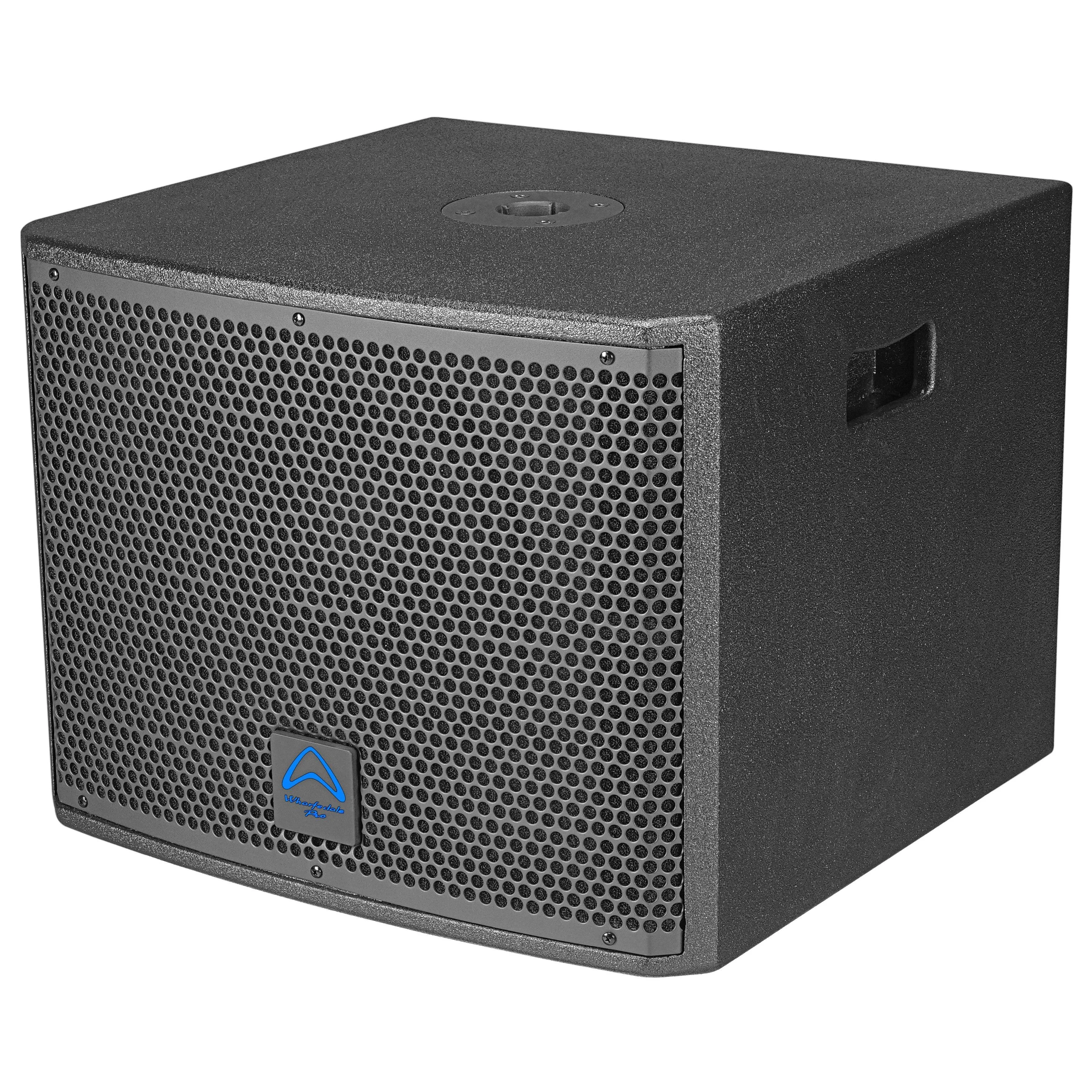

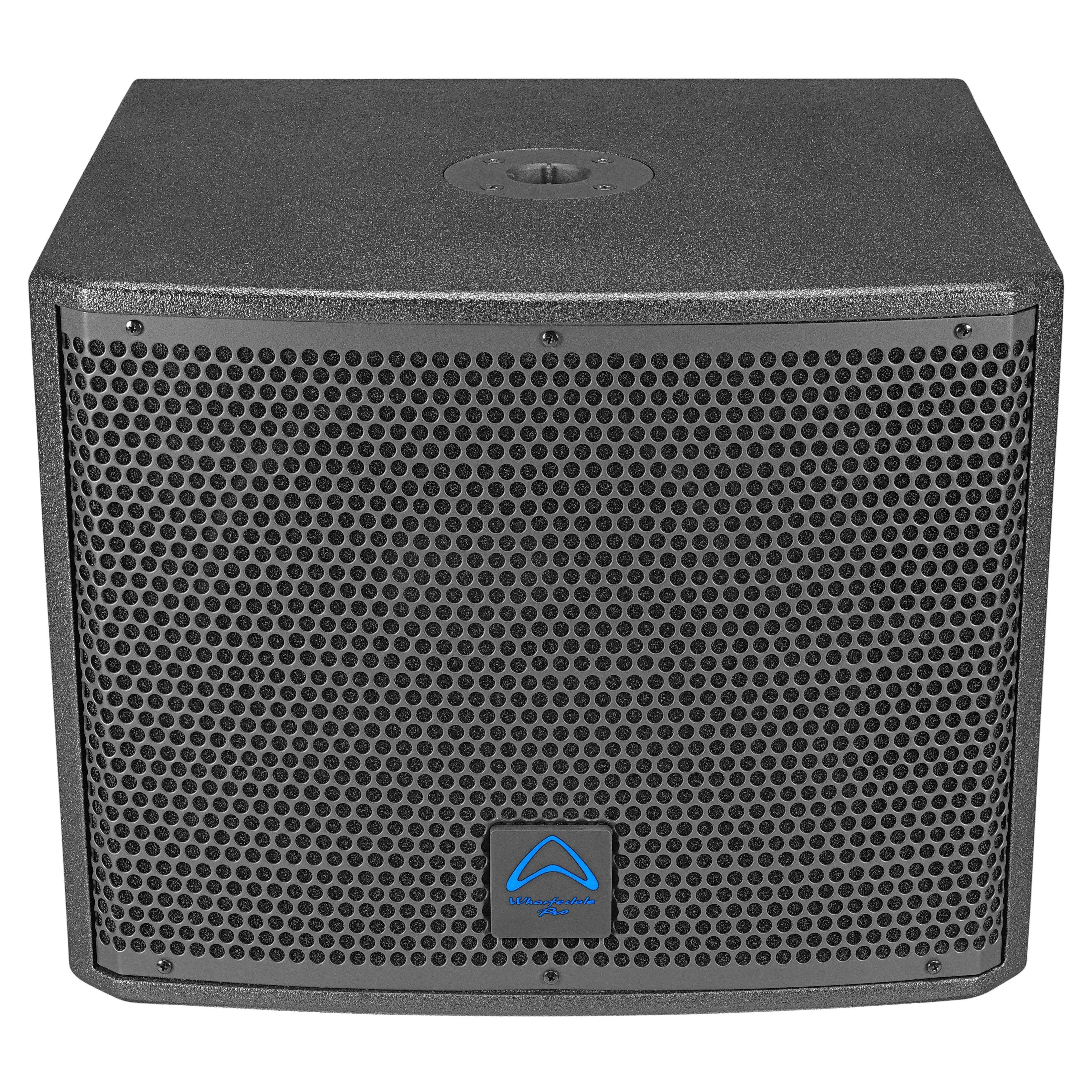

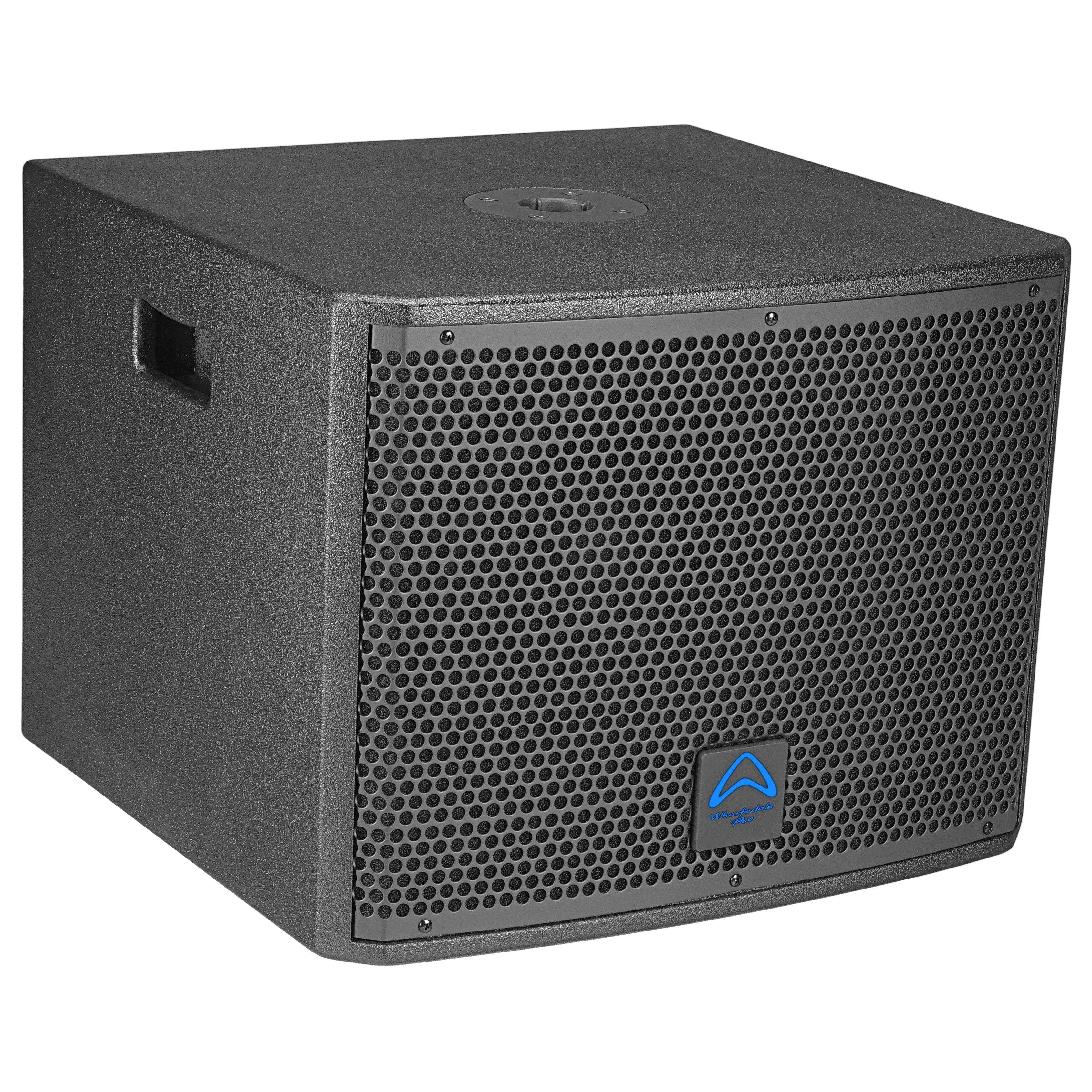

The Wharfedale Pro T-SUB-AX15B has become a favourite around the world. A powerful active subwoofer designed to add to any full range active tops including the Tourus, Titan and Typhon series.
But there are times when compact solutions and even more sub bass is needed. Introducing the compact T-SUB-AX12B and the thumping T-SUB-AX18B.
Custom Wharfedale Pro subwoofer drivers result in superb subwoofer performance that complements any system.

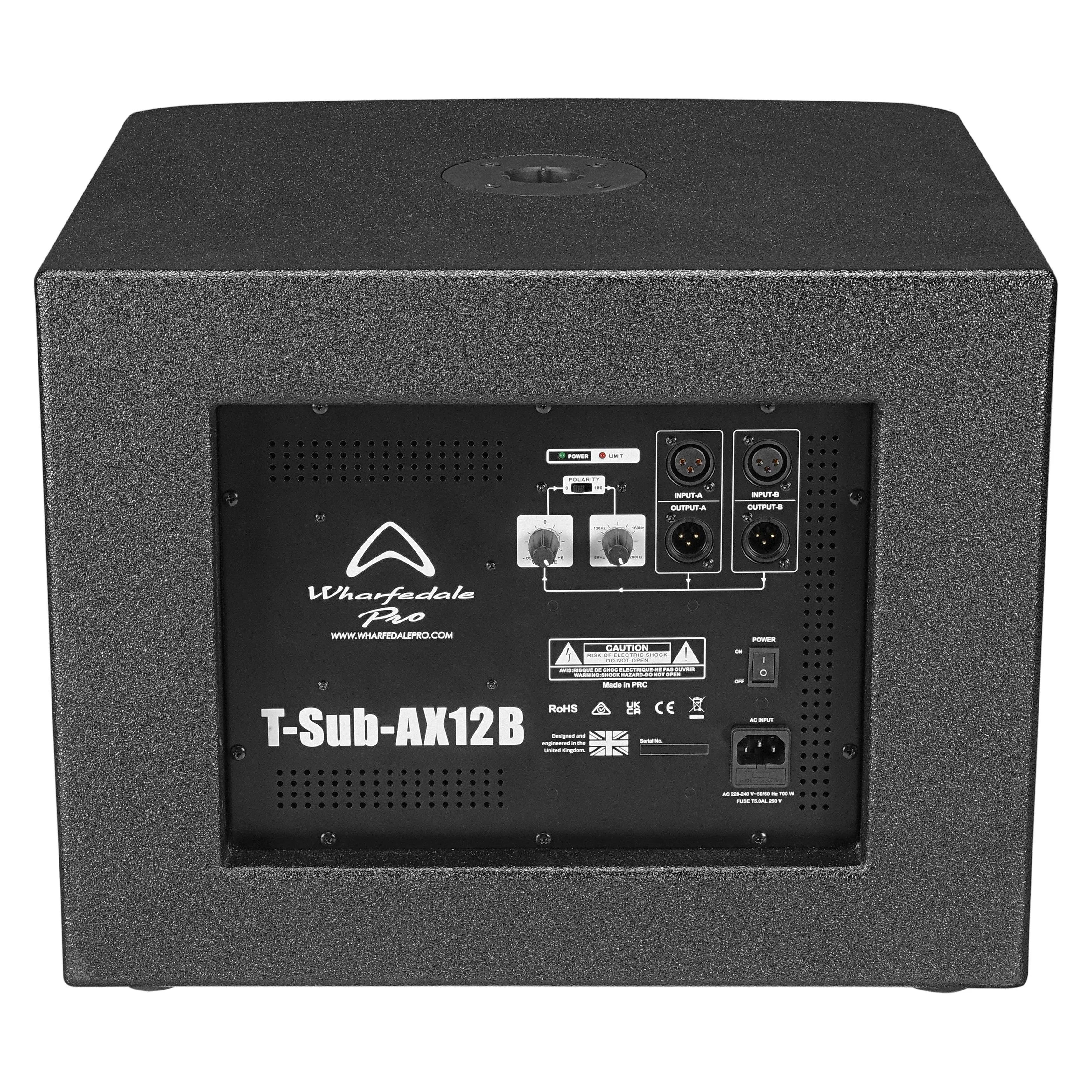

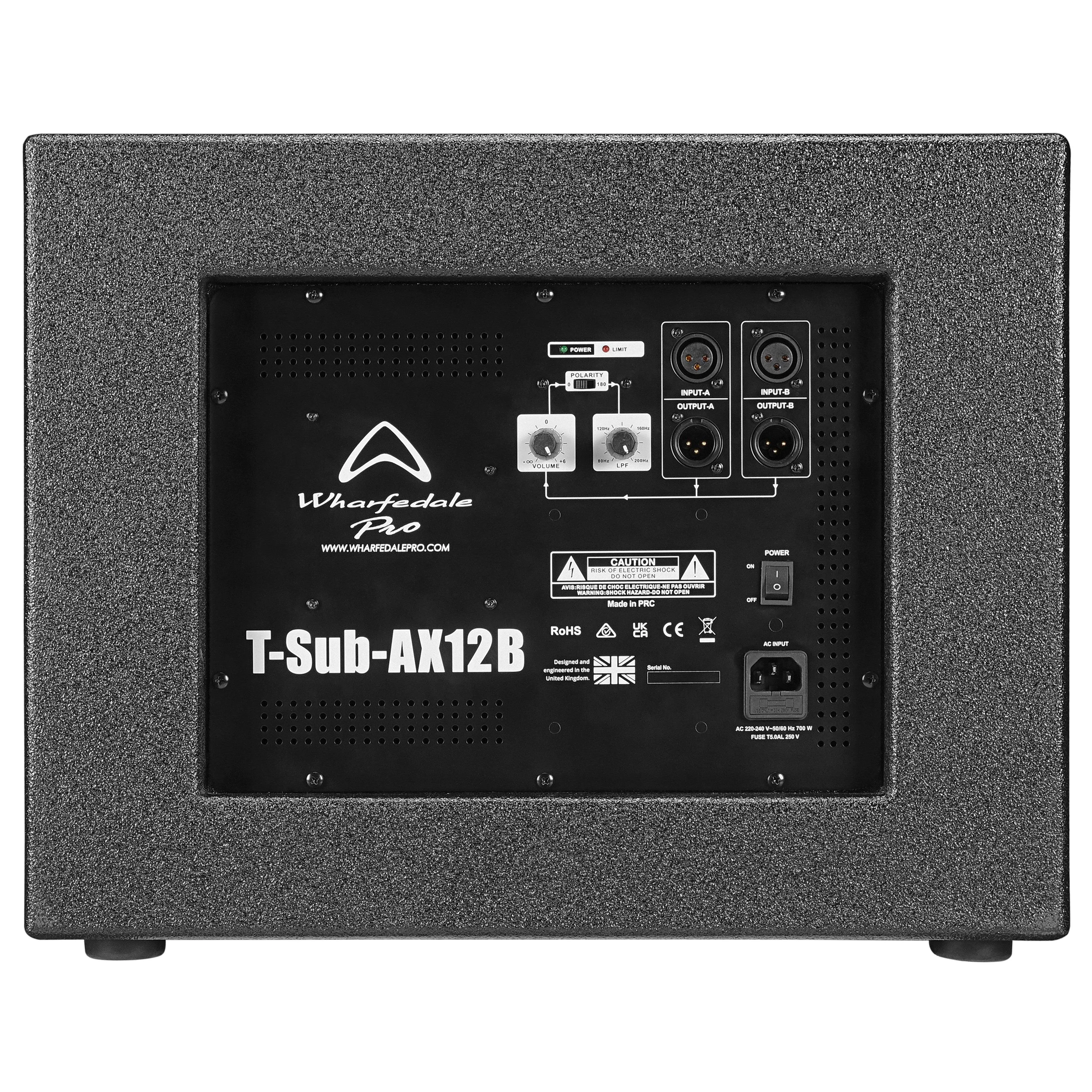

Both models feature an adjustable Low Pass Filter around the back allows for easy tuning to suit almost any active top.
Both models are also covered in the latest polyurea Tough-Tone paint to ensure durability, but can also be protected with optional soft cover accessories.
Hold on to your socks! These two new T-SUB’s will blow them off!
EVERYONE LOVES BASS !
That is exactly why we have created the T-Sub-AX series of active subwoofers.
The internal Class D amplifier delivers huge output power into the custom Wharfedale Pro LF driver to produce extreme subs and low end pressure into any system. Built for big bass, the plywood constructed cabinet is rock solid and is protected in durable black paint.

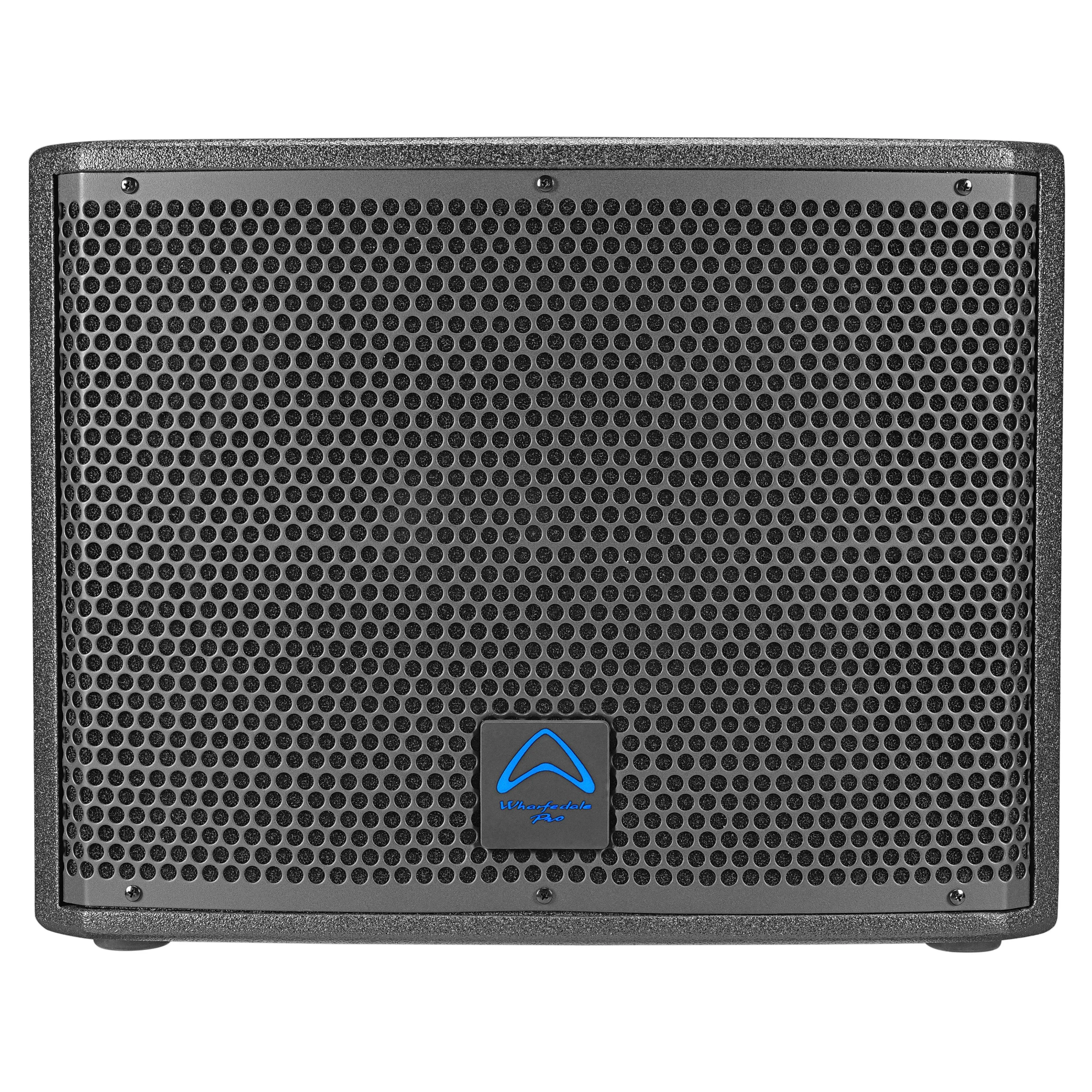

You’ll not only ‘feel’ a T-SUB-AX, but you will also see it! A new illuminated WP logo badge subtly glows and adds to the overall on-stage “power” of the new T-Sub.
T-Sub-AX models are designed to be the perfect companion for a Typhon or a Titan active loudspeaker.
Hold on to your socks! T-Sub-AX is going to blow them off!
Specifications-
| Model Name | T-Sub-AX12B |
| System Type | Active 12″ Subwoofer |
| Frequency Response ( /-3 dB) | 50 Hz-200 Hz |
| Frequency Response ( /-10 dB) | 45 Hz-250 Hz |
| Sensitivity @ 1 w / 1 meter | 97 dB |
| Maximum SPL (peak @ 1 meter) Half space. | 130 dB |
| Low Frequency Transducer | |
| Size (mm / inches) | 12” |
| Coil Size (mm / inches) | Quad layer 2.0″ |
| Impedance | 4 Ω |
| Amplifier | |
| Low-Frequency Power Amplifier (Class D) | 500 W Continuous / 1000 W Peak |
| Crossover Frequency | LPF 80-200 Hz (adjustable) |
| Controls | |
| Amplifier Protection | Yes |
| Power On Protection | Power switch on / off mute |
| Thermal Protection | Amplifier shutdown, auto reset |
| Driver Protection | Yes |
| DC Protection | Yes |
| Short Protection | Yes |
| Limiter Indicator | Red LED |
| Input type | Balanced |
| Input Connector | 2 x socket XLR |
| Input Impedance | 47 kΩ Balanced |
| Maximum Input Level | 5 V |
| Input Sensitivity | -10 dBu |
| Link Output Connector | 2 x pin XLR |
| Polarity Switch Selection | 0° / 180° |
| AC Power details | |
| Power Supply | SMPS |
| AC Power Options | 100 V-120 V and 200 V-240 V |
| Power Indicator | Green (back) / Blue logo (front) |
| Enclosure | |
| Enclosure Material | 15 mm Plywood |
| Colour | Black |
| Paint | Tough-Tone |
| Grille | 1.5 mm steel |
| Pole Mount (Top) | 35 mm |
| Dimensions (Unpacked)(mm / inches) | |
| Height | 378 mm / 14.9″ |
| Width | 493 mm / 19.4″ |
| Depth | 468 mm / 18.4″ |
| Dimensions (packed)(mm / inches) | |
| Height | 475 mm / 18.7″ |
| Width | 563 mm / 22.2″ |
| Depth | 538 mm / 21.2″ |
| Weight | |
| Net Weight (kg / lbs) | 21.0 kg / 46.2 lbs |
| Gross Weight (kg / lbs) | 25.5 kg / 56.1 lbs |
